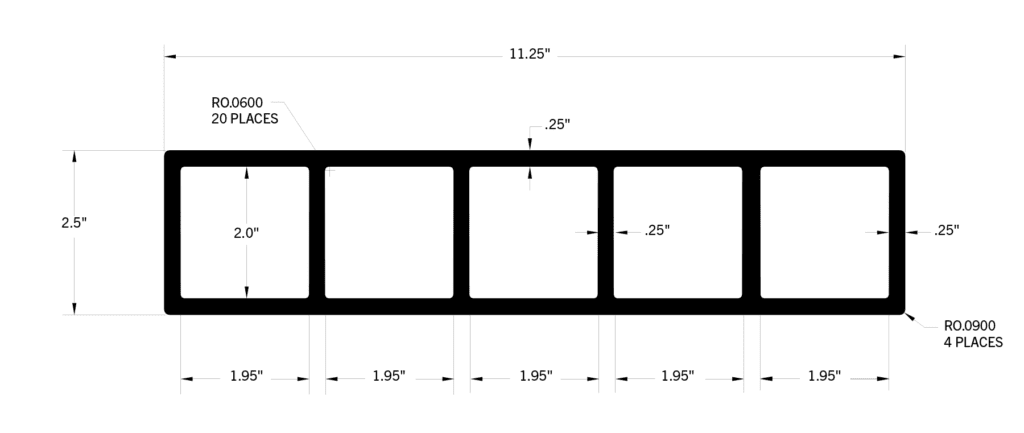

Bedford’s PRODeck H5 FRP decking is a 2-1/2" thick × 11-1/4" wide pultruded section engineered to carry H5 loads. With a gritted anti-skid surface and resistance to rot, rust and corrosion, it’s built for industrial walkways and high-traffic bridges.
|
Properties Per Foot of Width |
Weight |
|
A=3.20 in2 I=8.70 in4 S=6.96 in3 |
7.2 lbs/ft |
|
DEFLECTIONS (IN INCHES) DUE TO WIND LOADS |
||||
|
Span (ft) |
50 psf |
75 psf |
100 psf |
125 psf |
|
6 |
0.12 |
0.18 |
0.23 |
0.29 |
|
7 |
0.22 |
0.33 |
0.43 |
0.54 |
|
8 |
0.37 |
0.55 |
0.74 |
0.92 |
|
9 |
0.59 |
0.89 |
1.18 |
1.48 |
|
10 |
0.90 |
1.35 |
1.81 |
|
|
11 |
1.32 |
1.98 |
||
|
12 |
1.87 |
|||
|
DELECTIONS (IN INCHES) DUE TO WATER DIFFERENTIAL |
||||
|
Span (ft) |
6″ |
8″ |
10″ |
12″ |
|
6 |
0.01 |
0.02 |
0.03 |
0.04 |
|
7 |
0.02 |
0.03 |
0.05 |
0.07 |
|
8 |
0.03 |
0.05 |
0.08 |
0.12 |
|
9 |
0.05 |
0.08 |
0.13 |
0.18 |
|
10 |
0.07 |
0.13 |
0.20 |
0.28 |
|
11 |
0.10 |
0.18 |
0.29 |
0.41 |
|
12 |
0.15 |
0.26 |
0.41 |
0.58 |
|
13 |
0.20 |
0.36 |
0.56 |
0.80 |
|
14 |
0.27 |
0.48 |
0.75 |
1.08 |
|
15 |
0.36 |
0.63 |
0.99 |
1.43 |
|
16 |
0.46 |
0.82 |
1.28 |
1.85 |
|
17 |
0.59 |
1.05 |
1.63 |
2.35 |
|
18 |
0.74 |
1.31 |
2.05 |
2.96 |
|
19 |
0.92 |
1.63 |
2.55 |
3.67 |
|
20 |
1.13 |
2.00 |
3.13 |
|
Maximum service load is determined by a 2.5 safety factor.
| Size in Inches (A x B) | Lbs./Lin. Ft. |
| 11-1/4 x 2-1/2 x 1/4 | 7.1 |

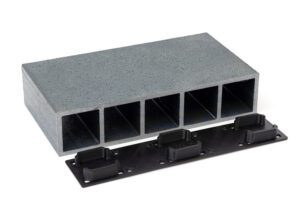

Optional endcaps are available for PRODeck decking to close open profile ends and protect the interior from dirt, debris and moisture. Endcaps also create a clean, finished edge and help conceal the decking type from view, giving installations a consistent appearance. Designed for quick, easy installation, endcaps snap securely into place with minimal effort.
|
ALLOWABLE CONCENTRATED LOAD TABLES (LB/FT WIDTH OF PANEL) |
||||||
|
L/D RATIOS |
DEFLECTION (IN) |
|||||
|
FREE SPAN L (IN) |
180 |
240 |
360 |
0.25 |
0.375 |
MAX. SERVICE LOAD |
| 12 | **** | **** | **** | **** | **** | 13,113 |
| 18 | 9,223 | 6,917 | 4,611 | **** | **** | 12,534 |
| 24 | 7,973 | 5,980 | 3,986 | **** | **** | 11,832 |
| 30 | 6,421 | 4,816 | 3,211 | 9,632 | **** | 11,144 |
| 36 | 5,225 | 3,919 | 2,613 | 6,531 | 9,797 | 10,194 |
| 42 | 4,153 | 3,115 | 2,076 | 4,449 | 6,674 | 8,654 |
| 48 | 3,445 | 2,584 | 1,722 | 3,229 | 4,844 | 7,968 |
| 54 | 2,706 | 2,029 | 1,353 | 2,255 | 3,382 | 7,794 |
| 60 | 2,377 | 1,783 | 1,189 | 1,783 | 2,674 | 7,469 |
| 66 | 2,006 | 1,505 | 1,003 | 1,368 | 2,052 | 7,251 |
| 72 | 1,704 | 1,278 | 852 | 1,065 | 1,597 | 7,002 |
| 78 | 1,453 | 1,090 | 727 | 838 | 1,258 | 6,673 |
| 84 | 1,256 | 942 | 628 | 673 | 1,010 | 5,772 |
| 90 | 1,097 | 823 | 548 | 548 | 823 | 5,472 |
| 96 | 972 | 729 | 486 | 456 | 683 | 4,995 |
|
ALLOWABLE UNIFORM LOAD TABLES (PSF) |
||||||
|
L/D RATIOS |
DEFLECTION (IN) |
|||||
|
FREE SPAN L (IN) |
180 |
240 |
360 |
0.25 |
0.375 |
MAX. SERVICE LOAD |
| 12 | **** | **** | **** | **** | **** | 26,226 |
| 18 | 9,837 | 7,378 | 4,919 | **** | **** | 16,712 |
| 24 | 6,378 | 4,784 | 3,189 | **** | **** | 11,832 |
| 30 | 4,110 | 3,082 | 2,055 | 6,164 | **** | 8,915 |
| 36 | 2,787 | 2,090 | 1,393 | 3,483 | 5,225 | 6,796 |
| 42 | 1,898 | 1,424 | 949 | 2,034 | 3,051 | 4,945 |
| 48 | 1,378 | 1,033 | 689 | 1,292 | 1,938 | 3,984 |
| 54 | 962 | 722 | 481 | 802 | 1,203 | 3,464 |
| 60 | 761 | 570 | 380 | 570 | 856 | 2,988 |
| 66 | 584 | 438 | 292 | 398 | 597 | 2,637 |
| 72 | 454 | 341 | 227 | 284 | 426 | 2,334 |
| 78 | 358 | 268 | 179 | 206 | 310 | 2,053 |
| 84 | 287 | 215 | 144 | 154 | 231 | 1,649 |
| 90 | 234 | 175 | 117 | 117 | 175 | 1,459 |
| 96 | 194 | 146 | 97 | 91 | 137 | 1,249 |
We can create custom FRP profiles and structures for your specific application. The possibilities are virtually endless. In addition to our products, we offer in-house design, engineering and fabrication capabilities to match your product needs. Just contact us for a quote or assistance with engineering a solution for your project.
