Bedford’s PRODeck LV FRP decking provides durability in lighter profiles designed for everyday pedestrian use. This decking features a non-slip grit surface and installs easily on bridges, trails and walkways.

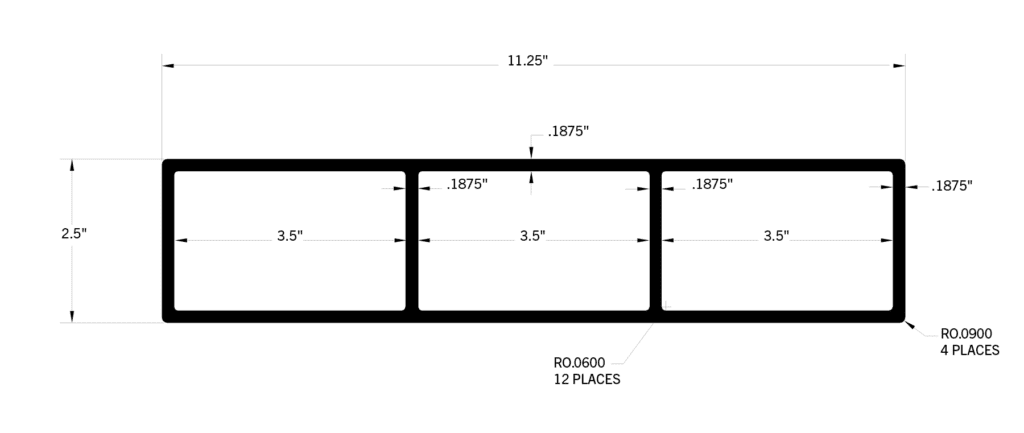

Size in Inches (A x B)	Lbs./Lin. Ft.
11-1/4 x 2-1/2 x 3/16	4.8

Nominal dimensions shown. For greater detail, refer to the Design Guide or Contact Us for part drawings.

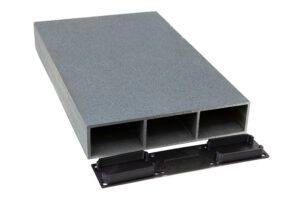

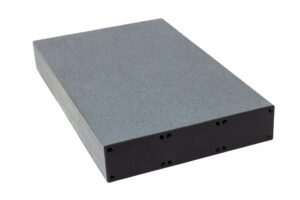

Optional endcaps are available for PRODeck decking to close open profile ends and protect the interior from dirt, debris and moisture. Endcaps also create a clean, finished edge and help conceal the decking type from view, giving installations a consistent appearance. Designed for quick, easy installation, endcaps snap securely into place with minimal effort.

ALLOWABLE CONCENTRATED LOAD TABLES (LB/FT WIDTH OF PANEL)
	L/D RATIOS			DEFLECTION (IN)
FREE SPAN L (IN)	180	240	360	0.25	0.375	MAX. SERVICE LOAD
12	****	****	3,191	****	****	3,738
18	****	****	2,803	****	****	3,616
24	****	****	2,504	****	****	3,564
30	****	3,134	2,089	****	****	3,292
36	****	2,576	1,718	****	****	3,066
42	2,728	2,046	1,364	2,923	****	2,937
48	2,243	1,682	1,121	2,103	****	2,878
54	1,908	1,431	954	1,590	2,385	2,810
60	1,592	1,194	796	1,194	1,791	2,790
66	1,344	1,008	672	916	1,375	2,661
72	1,136	852	568	710	1,065	2,532
78	970	727	485	560	839	2,425
84	850	637	425	455	683	2,238
90	748	561	374	374	561	2,128
96	660	495	330	309	464	1,956

ALLOWABLE UNIFORM LOAD TABLES (PSF)
	L/D RATIOS			DEFLECTION (IN)
FREE SPAN L (IN)	180	240	360	0.25	0.375	MAX. SERVICE LOAD
12	****	****	5,105	****	****	7,477
18	****	****	2,990	****	****	4,822
24	****	3,005	2,003	****	****	3,564
30	****	2,006	1,337	****	****	2,634
36	1,832	1,374	916	****	****	2,044
42	1,247	935	624	1,336	****	1,678
48	897	673	449	841	1,262	1,439
54	678	509	339	565	848	1,249
60	510	382	255	382	573	1,116
66	391	293	195	267	400	968
72	303	227	151	189	284	844
78	239	179	119	138	207	746
84	194	146	97	104	156	640
90	160	120	80	80	120	568
96	132	99	66	62	93	489
